Typical Description / Specification of Poco X3 LCD Panel

Product Name:

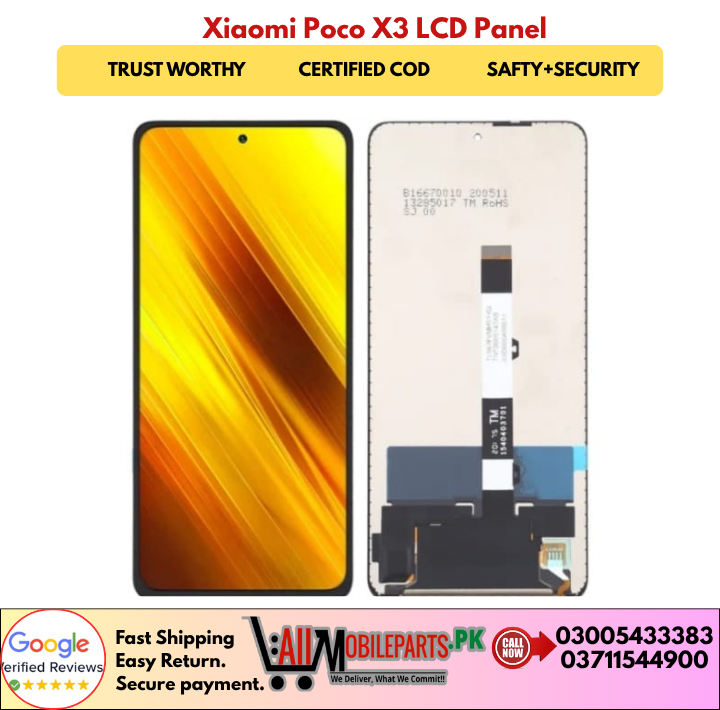

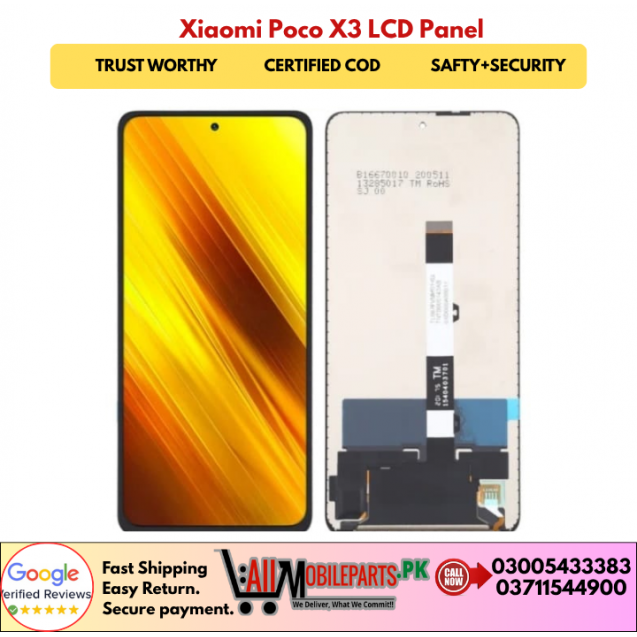

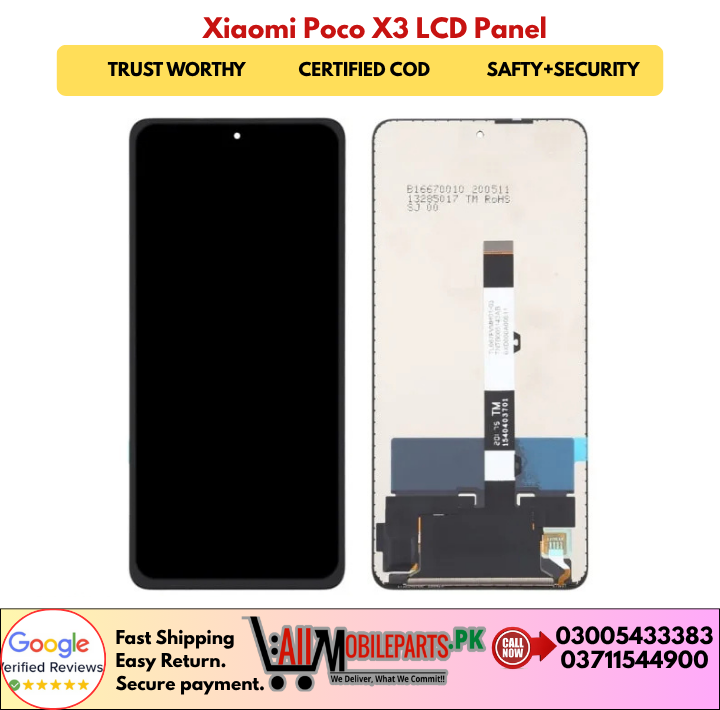

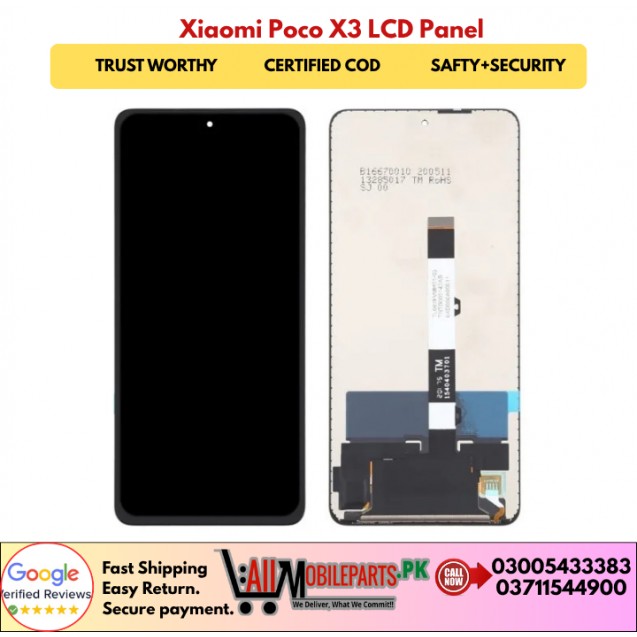

Xiaomi Poco X3 LCD Display + Touch Digitizer (Screen Assembly)

Compatibility / Models:
Works for Poco X3 / Poco X3 NFC / Poco X3 Pro (verify model code before purchase)

Display Type & Features:

Parameter	Typical Value / Note
Panel Type	IPS / TFT LCD (not AMOLED)
Screen Size	6.67 inches diagonal
Resolution	Full HD+ — 1080 × 2400 pixels
Aspect Ratio	20:9
Pixel Density	~395 ppi
Refresh Rate	120 Hz
Touch Sampling Rate	240 Hz (touch responsiveness)
HDR Support	HDR10
Brightness	Typical: ~450 nits (peak may be higher)
Screen Protection	Corning Gorilla Glass 5 (for original unit)

Module / Assembly Details:

• Comes with touch digitizer integrated (so both display and touch work)

• May be offered with frame / mid-frame or without frame (just the glass + LCD + flex)

• Flex cable connectors must match the phone’s logic board layout

• Some units are “Grade A” (high quality) / “original / OEM” / “aftermarket”

• Screen may be removed from damaged original phones (“separated from dead boards”) in some shops

Other Details:

• The Poco X3 has an LCD, not AMOLED, which means true blacks are backlit and not self-emissive

• In some units, the display panel is manufactured by Tianma or Huaxing (users have reported variants)

• Replacement should be done carefully; misalignment or pressure can lead to dead spots or bleed

• After replacement, test display, touch, brightness, and color uniformity before sealing
